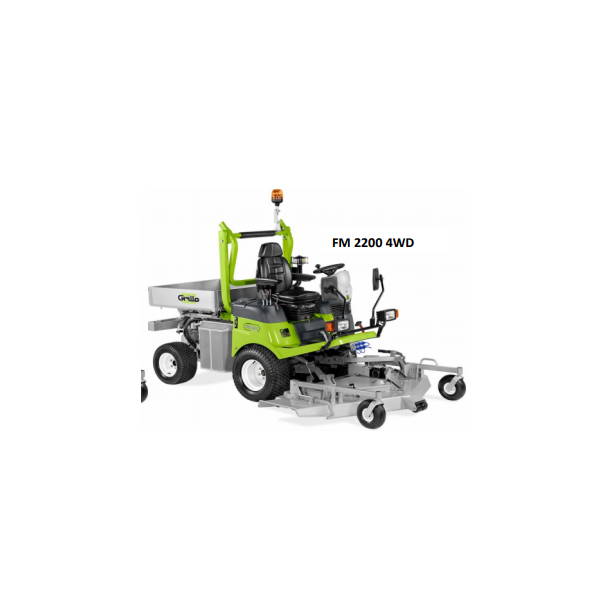

Grillo FM 2200 4WD

Ring 40 10 63 01 for at lægge en bestilling

281.250,00 DKK

(inkl. moms)

Den effektive plæneklipper, 150 til 160 cm, og andre arbejdsmuligheder, der kan sammensættes efter behov med f.eks. lad, græs-/løvopsamler, kabine m/u aircondition mm.

Model/Varenr.: FM 2200 4WD

Beskrivelse

Grillo FD2200 er en af markedes mest

effektive maskiner til græs og løv opsamling.
Tanken er med hydraulisk løft og kan hæves
til 210 cm.Ved tømning udvides rækkevidden
bagud med yderligere 50 cm.

Undervognen er løftet 180 mm fra jorden,
og giver mulighed for at kommer op over
fortov og kantsten.

Den 4-cylinders motor gør den meget lydløs,
med mindre vibrationer, og samtidig mere
kraftfuld. Maskinen er let at vedligeholde.

	Engine	Yanmar 4TNV88 Start electric, with 12 V battery Supply diesel Displacement 2190 cc, 4 Cylinders Power 44 HP (33 kW) @ 2600 rpm Torque 140 Nm @ 1800 rpm Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter .
	Fuel tank capacity	35 L
	Hydraulic oil tank	25 L
	Traction	Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
	Gearbox	Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
	Clutch	Hydraulic with electric control activated through PTO with blade brake
	Cutting height	Adjustable at 25 - 35 - 50 - 60 - 75 - 85 - 95 - 110 mm
	Grass collector capacity	1200 L
	Grass catcher charging system	Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling.
	Grass collector discharging system	Hydraulic grass catcher emptying with automatic opening
	Maximal discharging height	2100 mm
	Rear projection	500 mm
	Differential locking	Self-engaging and manual by pushing the button
	Front tyres	Turf 24x12.00-12
	Rear tyres	Turf 20x10.00-10
	Steering system	Hydro-steer
	Speed	Continuously variable from 0 to 20 km/h
	inner turning radius	620 mm
	Seat	Comfortable seat equipped with springs with arm-rests and adjustable
	Mowing capacity per hour (indicative)	15500 m^2/h
	Accessories in series	Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit
	Length	2500 mm without cutting deck - 3420 mm with cutting deck [cod. 9L9611]
	Width	1350 mm without cutting deck - 1620 mm with cutting deck [cod. 9L9611]
	Height	1830 mm with the roll bar let down – 2160 mm with raised roll bar
	Distance between axles	1260 mm
	Clear span from the ground	180 mm
	Weight	1280 kg without cutting deck - 1460 kg with cutting deck [cod. 9L9611]

Tilbehør

155 cm Klipper for opsamler
160 cm 3 i en klipper
150 cm slagleklipper
Sneskraber 175 cm
Knivsæt for plæneluftning med slagleklipper
Hydraulisk udtag for skraber
Kabine med varmeanlæg
Aircondition
Fejemaskine
